Rear Axle Adapter for Meybo HSX Frame

0 Review(s)
€59.95
VAT included

Fit your Pulse wheels to a 2022-2024 Meybo HSX aluminum frame.

Quantity

Adapter to use the Pulse rear wheels with a 10mm axle on Meybo HSX frames with a 15mm axle.

Assembly advice: In order not to damage the paint on your frame, it is strongly recommended to lightly sand the area of ​​the frame in contact with the left reducer, the one with a thread, flat. This area is prone to paint build-up, if the surface is not perfectly flat when tightening the adapter, the paint may flake off in this area.

The left adapter should not be tightened beyond 10Nm. Put grease in both adapters, where the screw heads are positioned. The wheel should be tightened normally to 17Nm.

Compatible with the wheels:

  • Pulse ATTAK v2
  • Pulse ATTAK v3
  • Pulse Elite v2
  • Pulse WCS
  • Pulse WCS v2
  • Pulse SLS
  • Bemor

Only compatible with Pulse brand hubs, and only the listed hubs. Only for HSX Aluminum frames.

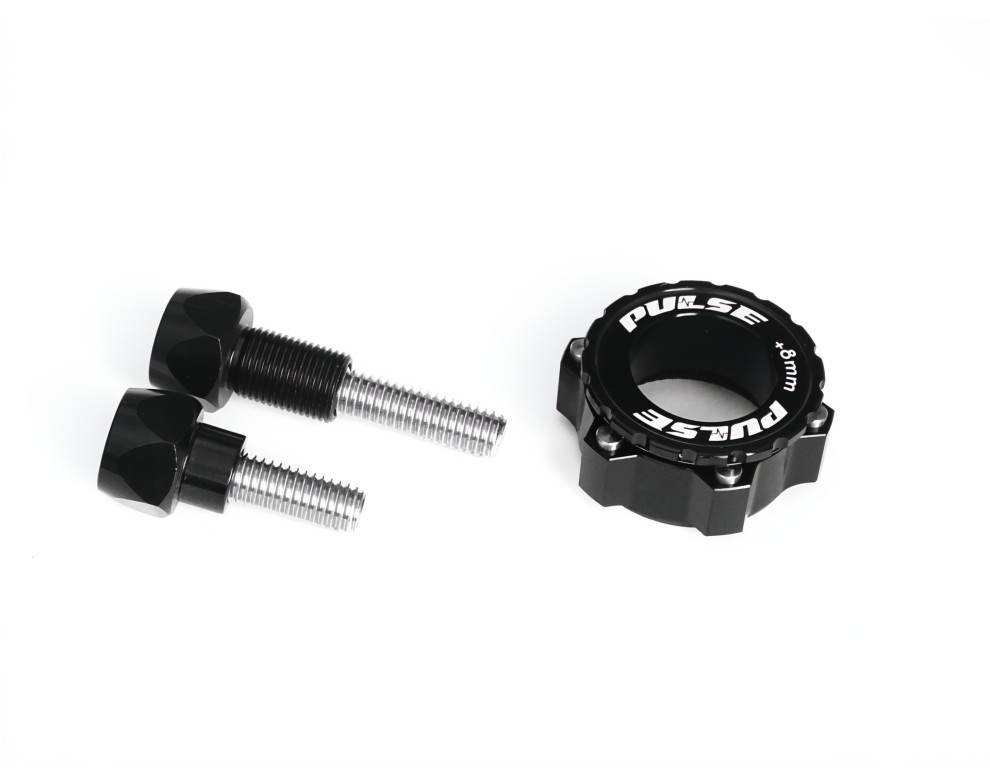

The kit contains:

  • The right reducer without thread, CNC machined in black anodized aluminum.
  • The left reducer with thread, CNC machined in black anodized aluminum.
  • Stainless steel clamping screw 3/8" UNC 1"3/4 - Stainless steel clamping screw 3/8" UNC 2" - The adapter for fixing the brake disc.

Important note: On Meybo HSX aluminum frames, the disc brake caliper has a non-standard position. The brake disc must be offset to the left using the spacers supplied with the frame. This kit includes an adapter that will allow you to use these spacers with the Pulse hubs listed below.

ADAPHSX15
19 Items

Data sheet

Material
Aluminium 6061T6
Screws Material
Zinc Steel
