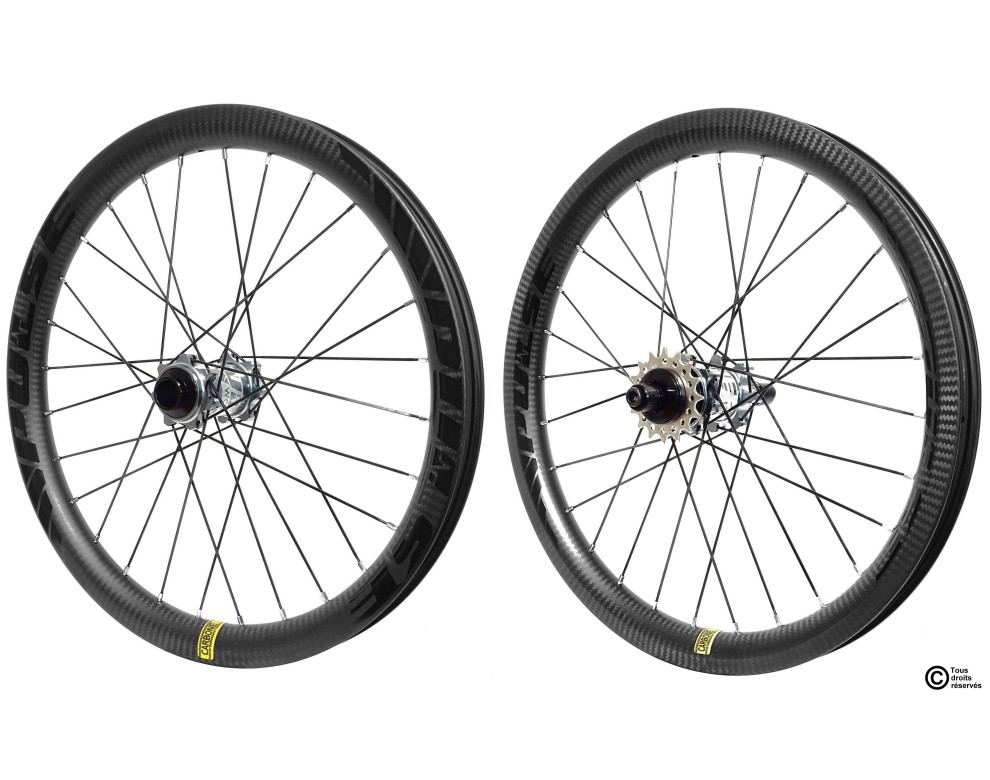

Pulse® WCS v2

Pulse® WCS v2

0 Review(s)
€1,099.95
VAT included

Very high-end wheels assembled by hand in France.

All the Pulse know-how in an extraordinary carbon wheelset.

Wheels size
Colour
Braking System
Front axle diameter
Quantity

Second generation of the Pulse® WCS model. The Pulse® WCS v2 model is the cream of the Pulse wheels!

The Pulse® wheels from the WCS series are optimized wheels, designed and developed as a whole. They provide unique sensations which are a direct result of their design. The wheels offer multiple features that you won't find anywhere else.

Very resistant and rigid, this pair of wheels offers exceptional performance. Forgiving for carbon wheels, they are responsive and precise. Carbon-graphene rims offer a reduction in wheel inertia. This reduction facilitates acceleration from departures and increases maneuverability. The spokes are the central element of the wheels with straight head, flat, made with C45 carbon steel. The wheels provide superior responsiveness and performance to all assemblies with classic bent spokes. With this arrangement, each spoke hole in the hub is perfectly aligned with the spoke holes in the rim. The quality of the components allows use both in racing and during winter training with minimal maintenance. The rear hub has 288 engagement points, i.e. less than 1° under the pedal, enough to have a top starting position and instantaneous recovery.



The benefits of Pulse® WCS v2 wheels that you won't find elsewhere:

  • Hubs designed in France in the Loire.
  • A handmade blend in the Loire.
  • The fastest ratchet engagement system on the market.
  • Sealing by labyrinth seal.
  • Flat, straight-pull spokes in C45 carbon steel with high fatigue resistance.
  • The use of ABS Nylstop spoke nipples, a patented self-locking system, with a nickel coating.
  • Tansome® H3055 Pregreg® carbon-graphene rims.
  • Reinforced rims with steel inserts at the spoke holes.
  • Enduro Bearings in CrMo 100C6 steel for extreme conditions with Kyodo Kushi teflon grease
  • Sprocket tightening system using internal thread with standard Shimano BSA key.
  • Tool-free rear hub bearing preload adjustment system and bearing wear compensation.
  • Rear axle without stop, removable without tools.
  • A titanium coating with laser engraving.



The advantages of Pulse® WCS v2 wheels that you will rarely find elsewhere:

  • A freewheel body made of SCM430 steel with heat treatment.
  • A support area on a large diameter (23mm) flat frame, to avoid damaging the paint when tightening.



Further information:

  • Junior/Expert wheels Weight: 1590g
  • PRO Wheel Weight: 1570g
  • OS20 Wheels Weight:  1640g
  • Cruiser Wheels Weight: 1760g
  • Delivered with screws, front axle, 16T cog, rim tapes, 4 spokes for maintenance.
  • Delivered without the disc brake
  • Delivered with carbon rim pads if V-brake option.



Important Notes:



Our wheels are made from high-end materials in order to guarantee optimal strength and performance for the practice of BMX Race while respecting constraints beyond the official standard in force: NF EN 14781. However, the wheels are not indestructible however, like any other high-end equipment, it is your duty to know your own limits and to ensure the maintenance of your wheels. Our wheels are guaranteed for 5 years against any hidden defects and manufacturing defects that have escaped our attention. If you damage your equipment by using it inappropriately, or by damaging it following shock, caused by sharp objects, twisting, compression, falling, abnormal impact and other actions beyond the control of Pulse ®, the warranty cannot apply.

PRWCSV2
5 Items

Data sheet

Rim Material
Carbon Tansome® H3055 Graphene
Spoke material
Carboned Steel C45
Nipple Material
Brass Nickel Coated
Hub Body Material
Aluminium 7075
Free Body Material
SCM430 Steel + heat treatment
Screws Material
Zinc Steel
Kind of Nipples
Selflocking ABS Nylstop
Kind of Seal
Labyrinth
Cog Standard
Shimano HG
Disc Brake Standard
Shimano Centerlock
Point of Engagement
288 PoE
Junior/Expert Size Weight
1590g
PRO Size Weight
1545g
OS20 Size Weight
1640g
Cruiser Size Weight
1760g
Guarantee of Conformity
2 years
Guarantee against hidden defects
5 years
